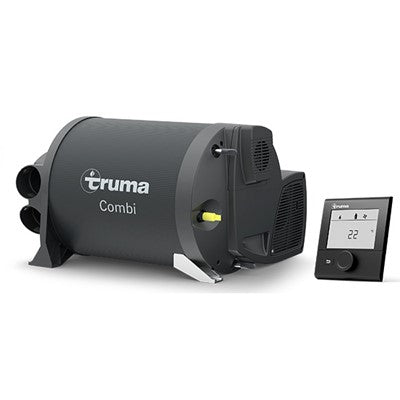

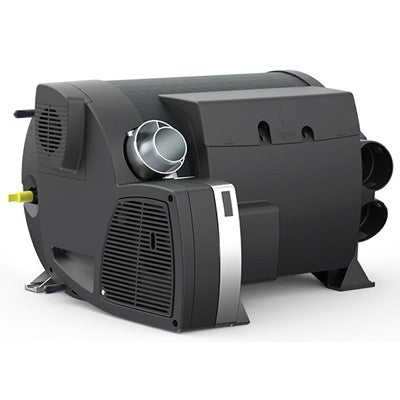

Truma Combi 4E Heater and Bolier with CP+ Panel

The truma combi 4e is an excellent choice for heating both water and living spaces in your caravan or motorhome. the combi 4e is quiet when operating and suprisingly lightweight when considering the high performance that it offers.

Featuring an integrated 10 litre stainless steel water tank, the combi 4e allows for independent heating of hot water in summer mode as well as both hot water and warm air in winter mode.

The combi 4e complete kit contains:
Truma combi 4e lpg gas and 230v electric unit
Truma cp plus digital control panel
John guest connection kit



ducting & outlets sold separately

Materials and Dimensions

• Heater model: truma combi 4e
• Dimensions (l x w x h): 510 x 450 x 300 mm
• Installation dimensions (l x w x h): 540 x 500 x 350mm**
• Weight (when empty of water): 15.1kg
• Heating time (from 15°c to 60°c) (water only): approx. 20min.
• Heating time (from 15°c to 60°c) (heater + water): approx. 80min.
• Rated thermal output (electric): 900/1800w
• Rated thermal output (gas): 2000/4000w
• Rated thermal output (electric & gas combined): 3800w
• Fuel consumption (gas): 160–320 g/h
• Water capacity: 10 litres
• Air flow rate: max. 287 m3/h
• Power consumption (at 230v): 3.9a / 7.8a
• Power consumption (at 12v): heating up boiler 0.2a up to temporary max. of 5.6a (average approx. 1.1a)
• Water pressure: max 2.8 bar
• Please note: combi comes with black cowl as standard.
